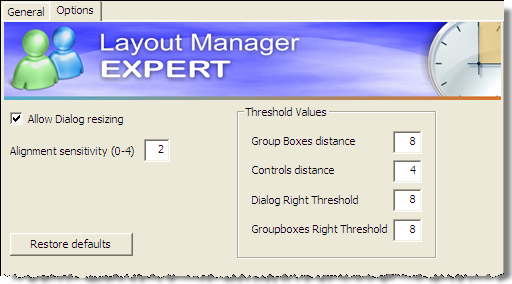

Layout Manager: Dialog Tab

Allow Dialog resizing

Deselect this option if you want to maintain the width and height of dialogs. Alchemy Layout Manager will move all elements within the Dialog frame and try to accommodate your layout without re-sizing the dialog frame.

 Alignment sensitivity

This options is used to set/reset the sensitivity of Layout Manager when creating relationships between rows and columns of controls. You can enter a value between 0 and 4.

Restore Defaults

Select this options to reset Alchemy Layout Manager with its original default settings and values.

Group Box distance

This is the minimum distance between a group box and adjacent objects. Setting this value will define how close items can be to each other in a generated layout.

Controls distance

This is the minimum distance between a control and adjacent objects. Setting this value will define how close items can be to each other in a generated layout.

Dialog Right Threshold

This is the minimum distance between a control and right border of a dialog frame. Setting this value will define how close items can be placed to the edge of a dialog.

Group Box Right Threshold

This is the minimum distance between a group box and adjacent objects. Setting this value will define how close items can be placed to the edge of a group box.
